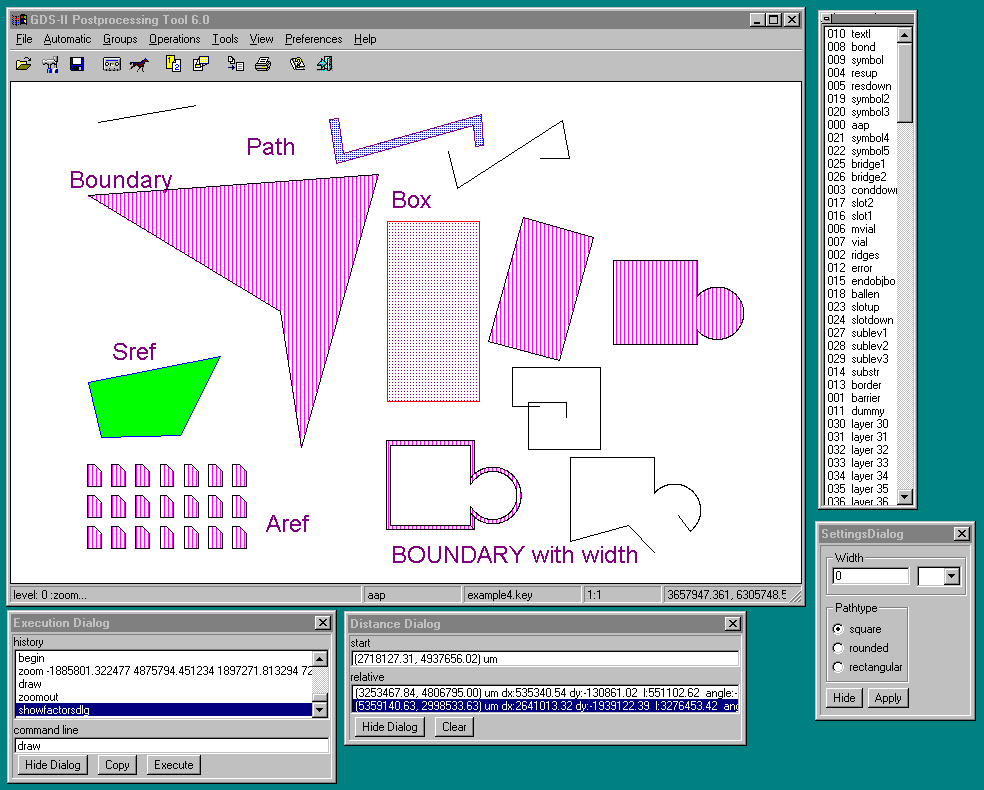

• main screen
• insert layer dialog to set the layer that is active for drawing new primitives.
• execution dialog (history of commands, which can also be recorded and replayed)
• distance dialog to measure distances
• settings dialog to set the width parameters for new primitives

Help system here

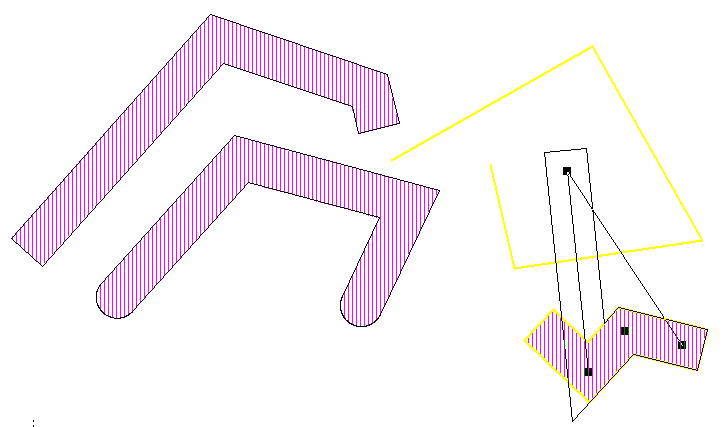

editing rectangle

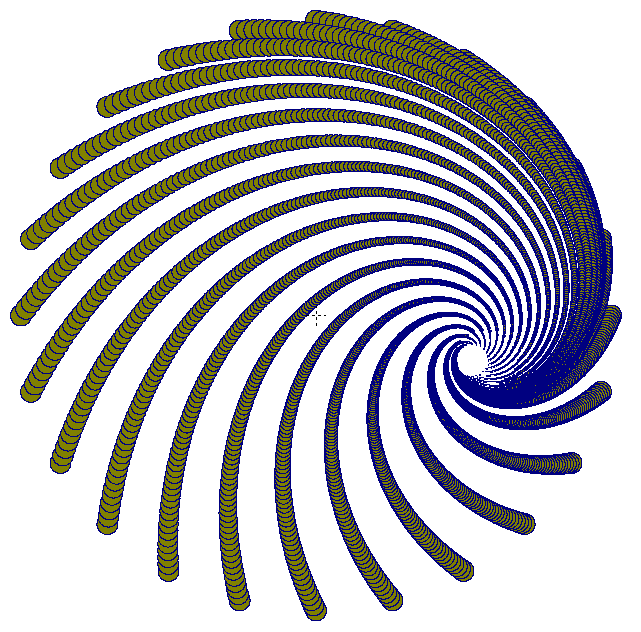

This can be reached by automatic replaying of process files

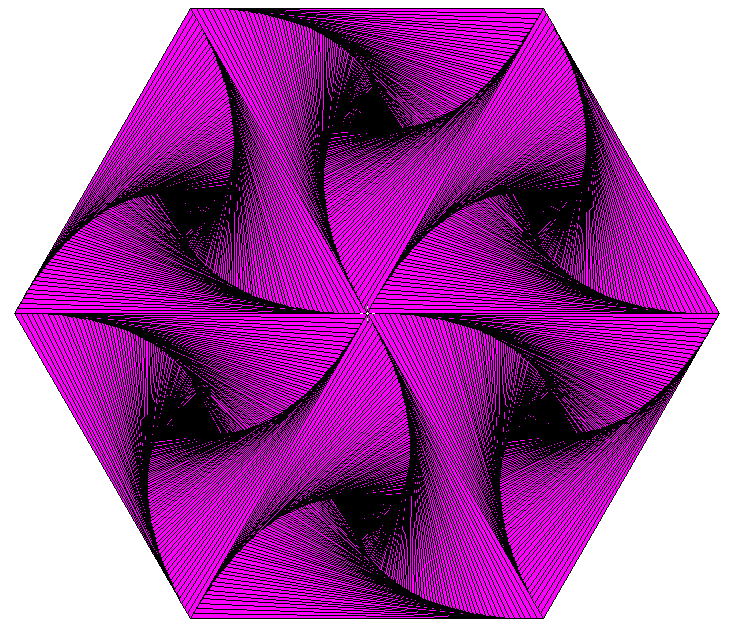

This can be reached by automatic replaying of process files

Moving a hiearchy of structures

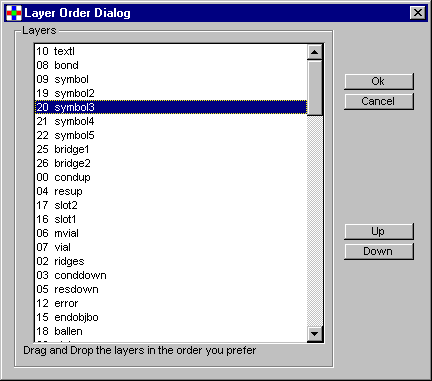

setting layer order for drawing layers in a defined order oon top each other>

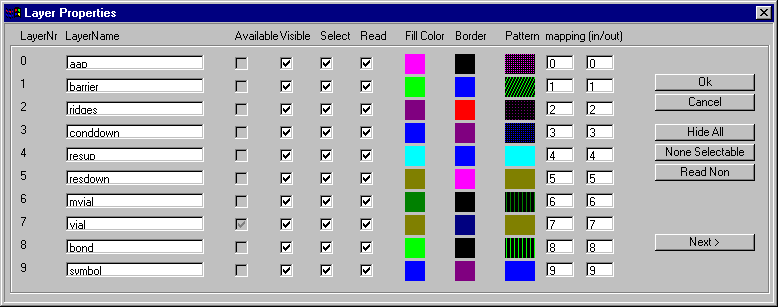

layer colors etc.

filling patterns for layers

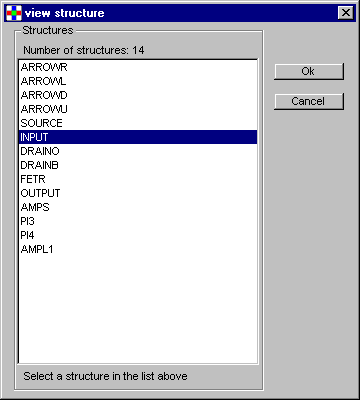

view a certain structure being part of the total drawing

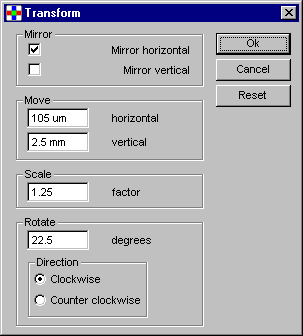

transformation of primitives
